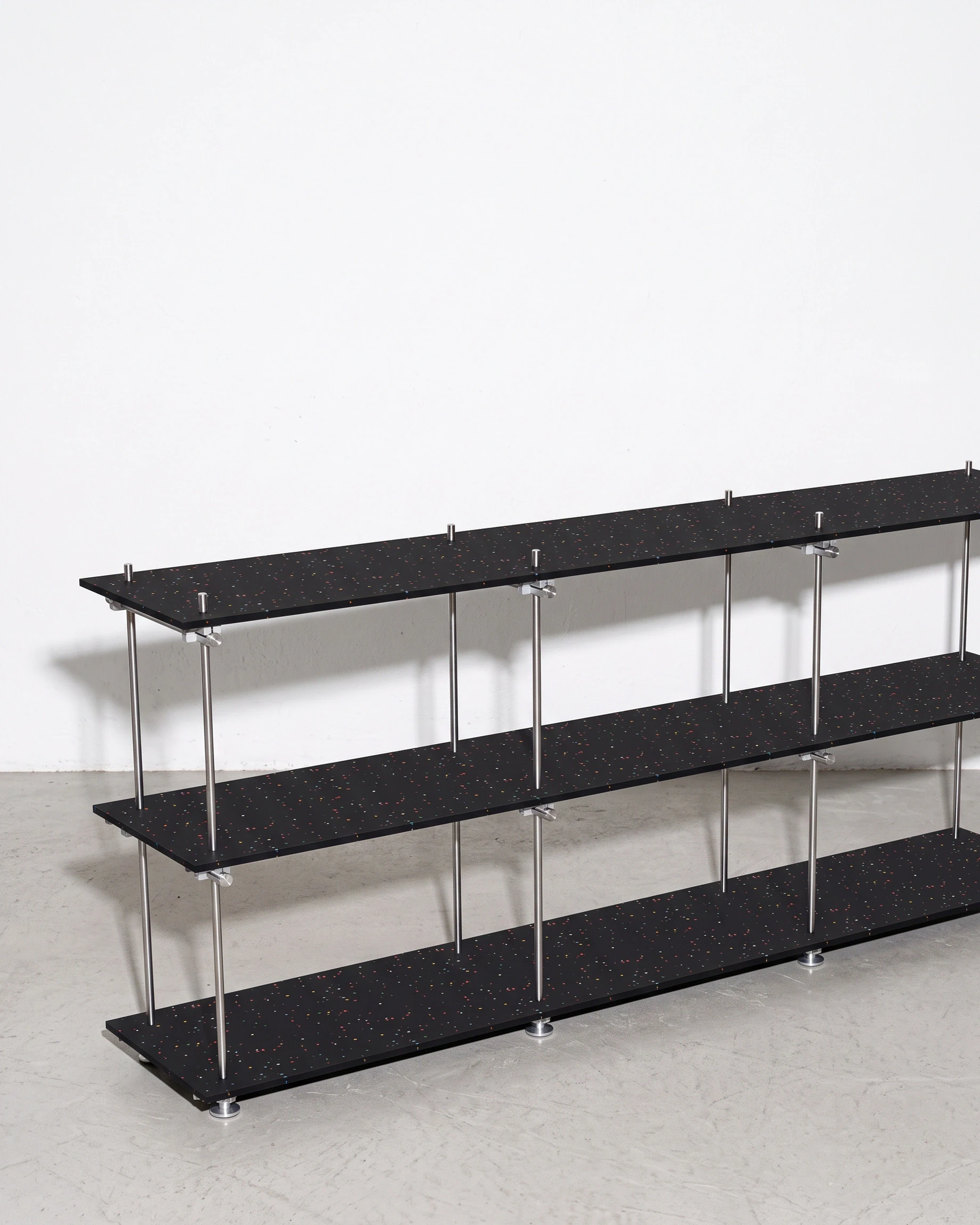

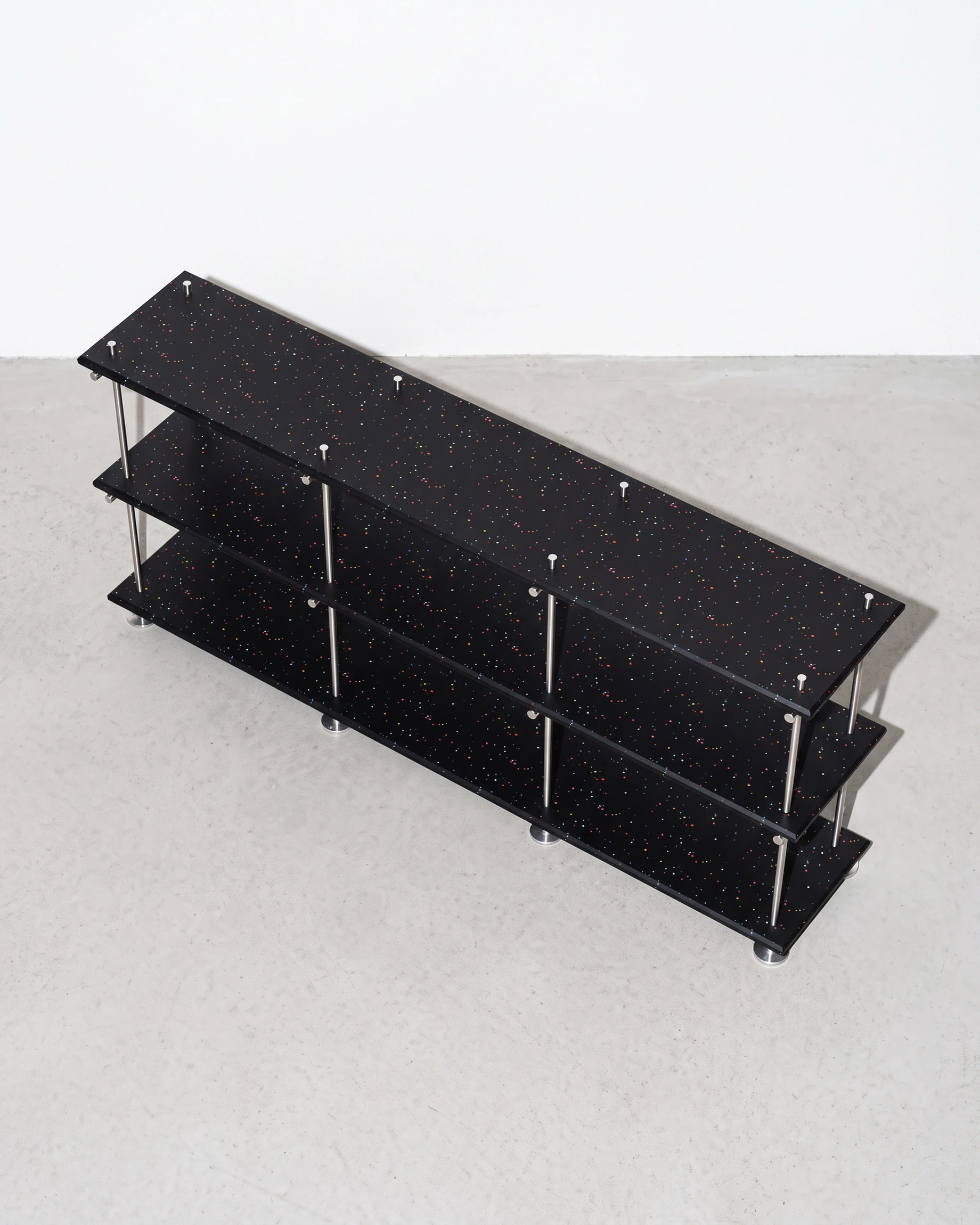

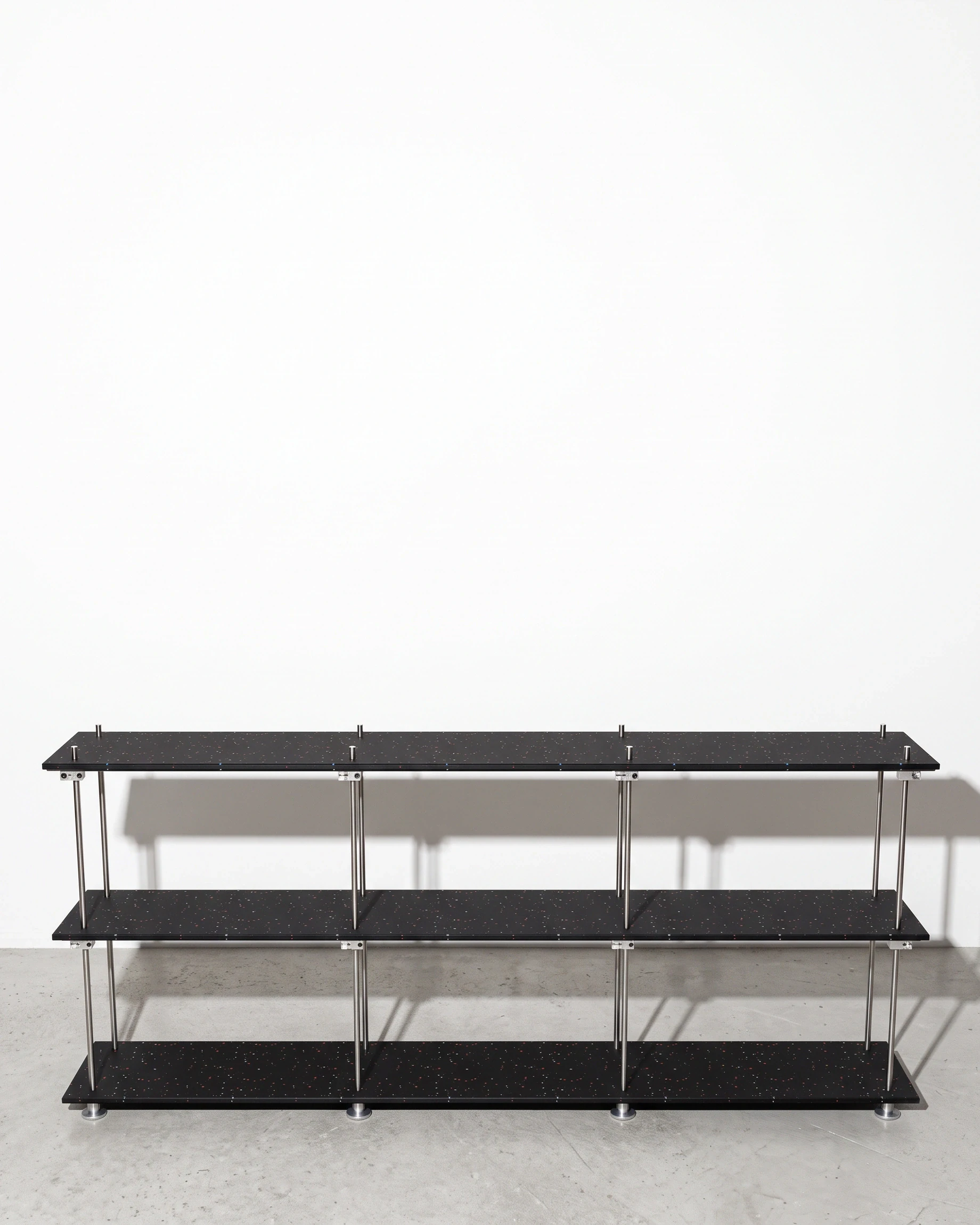

Display shelving · 198 × 40 × 88 cm
Collector
76,400 ₽
Pre-order: production from 45 working days
Colour · black, colour flecks

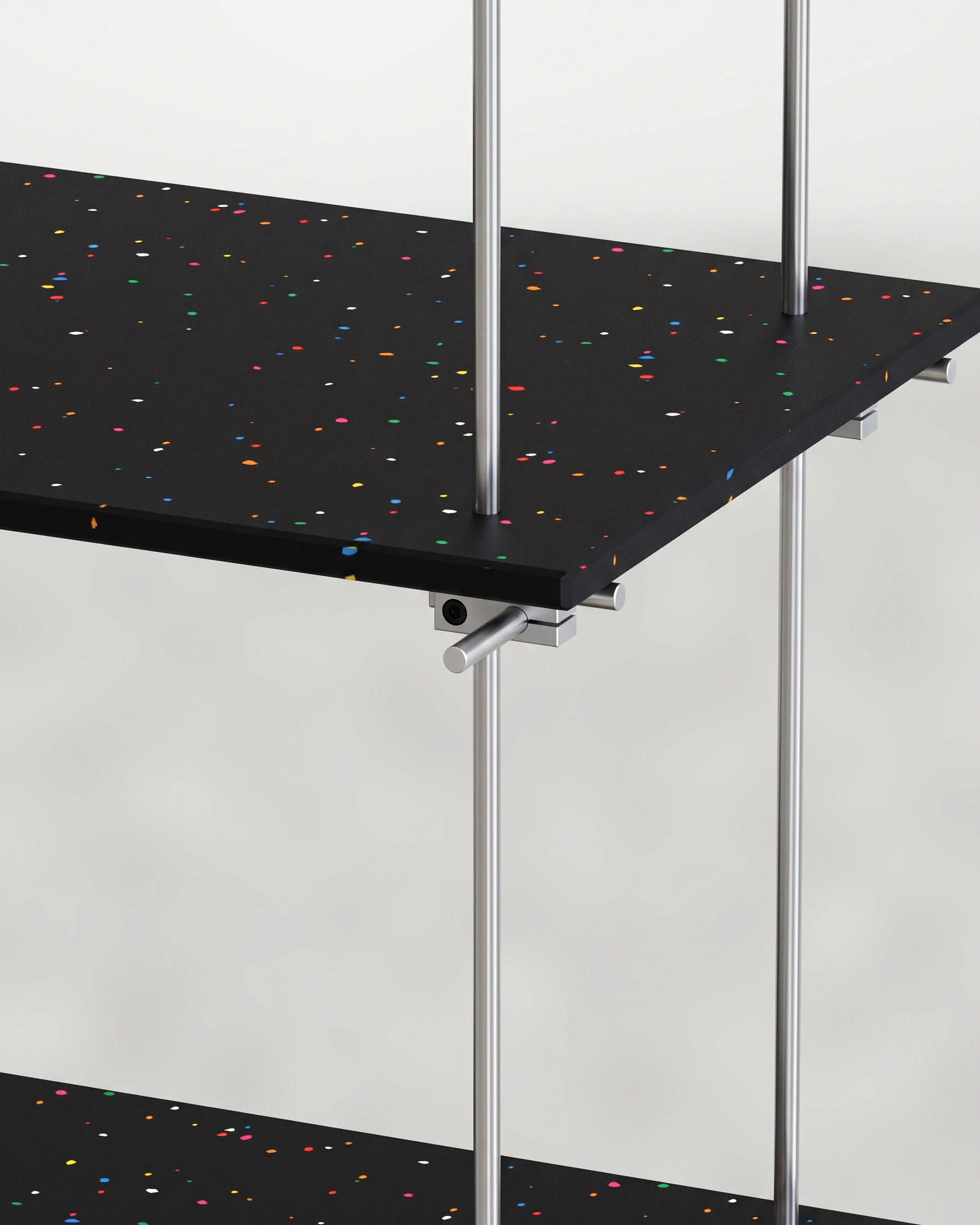

Recycled polystyrene shelves on hardened chrome-plated steel posts. The shelves sit on cross clamps — no glue, no screws: the unit goes together with the keys from the box and comes apart just as easily when you move.
- Overall size, W × D × H
- 1,980 × 400 × 878 mm
- Weight
- ≈ 50.9 kg
- Material
- rPS 12 mm · black, colour flecks
- Frame
- rods Ø10 mm, hardened chrome-plated steel
- Assembly
- with the keys from the box, by the instructions
Drawing
Front, side and plan views with dimensions. Click the sheet for a closer look. The file is an A3 sheet: print it at 100% and the scale is true.
What’s in the box
- Sheet parts
- shelf — 3
- Rods Ø10
- 26 pcs, 23.7 m, cut to length
- Feet
- 8 pcs
- Cross clamps
- 48 pcs
- Hex key set
- 1 pc
- Assembly instructions
- step by step, illustrated
Need a different size?
Build your own version in the configurator: size to the millimetre, colour, castors — with an instant price.
