Trolley · 60 × 31 × 65 cm
Bartender
25,600 ₽
Pre-order: production from 45 working days
Colour · black, colour flecks

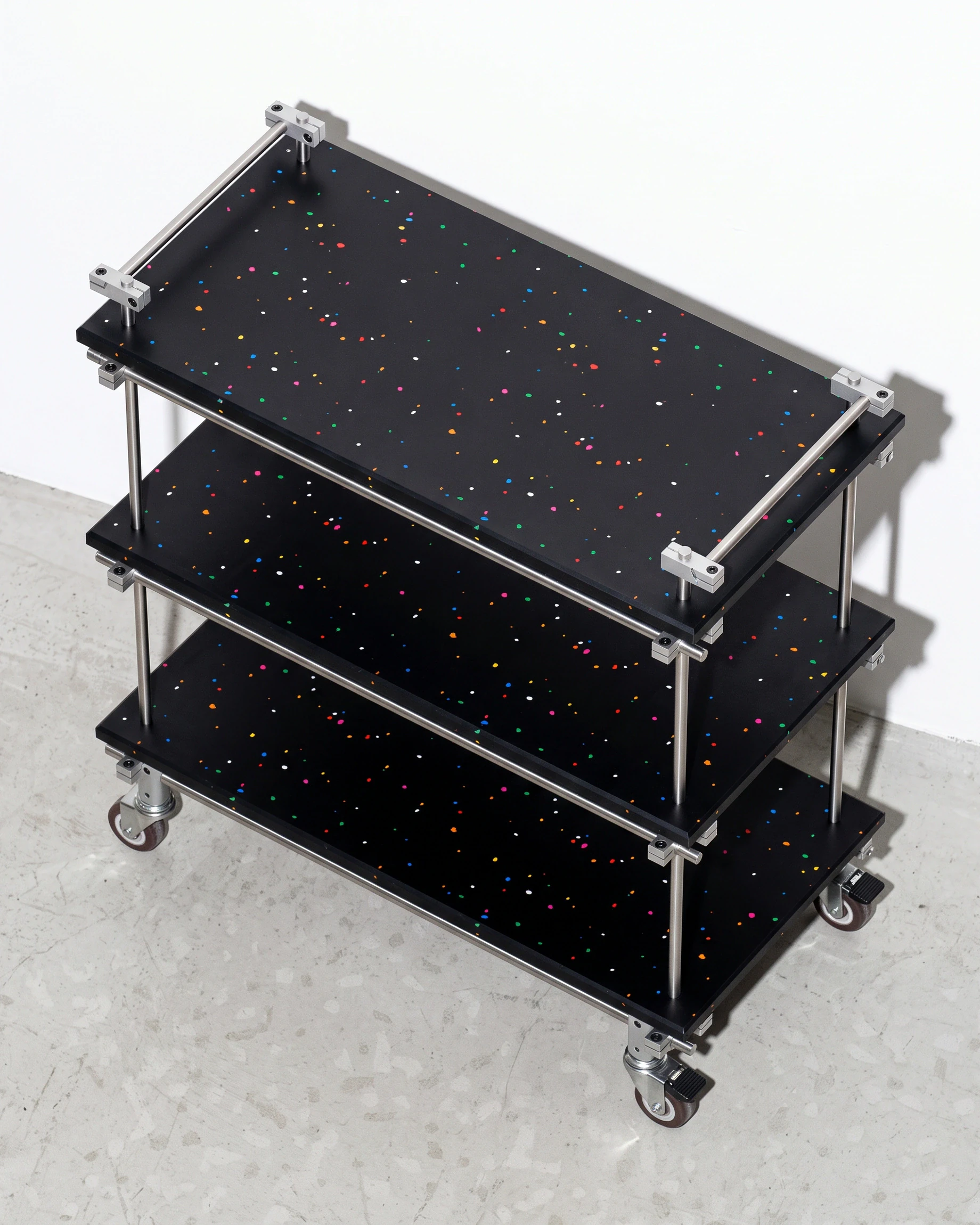

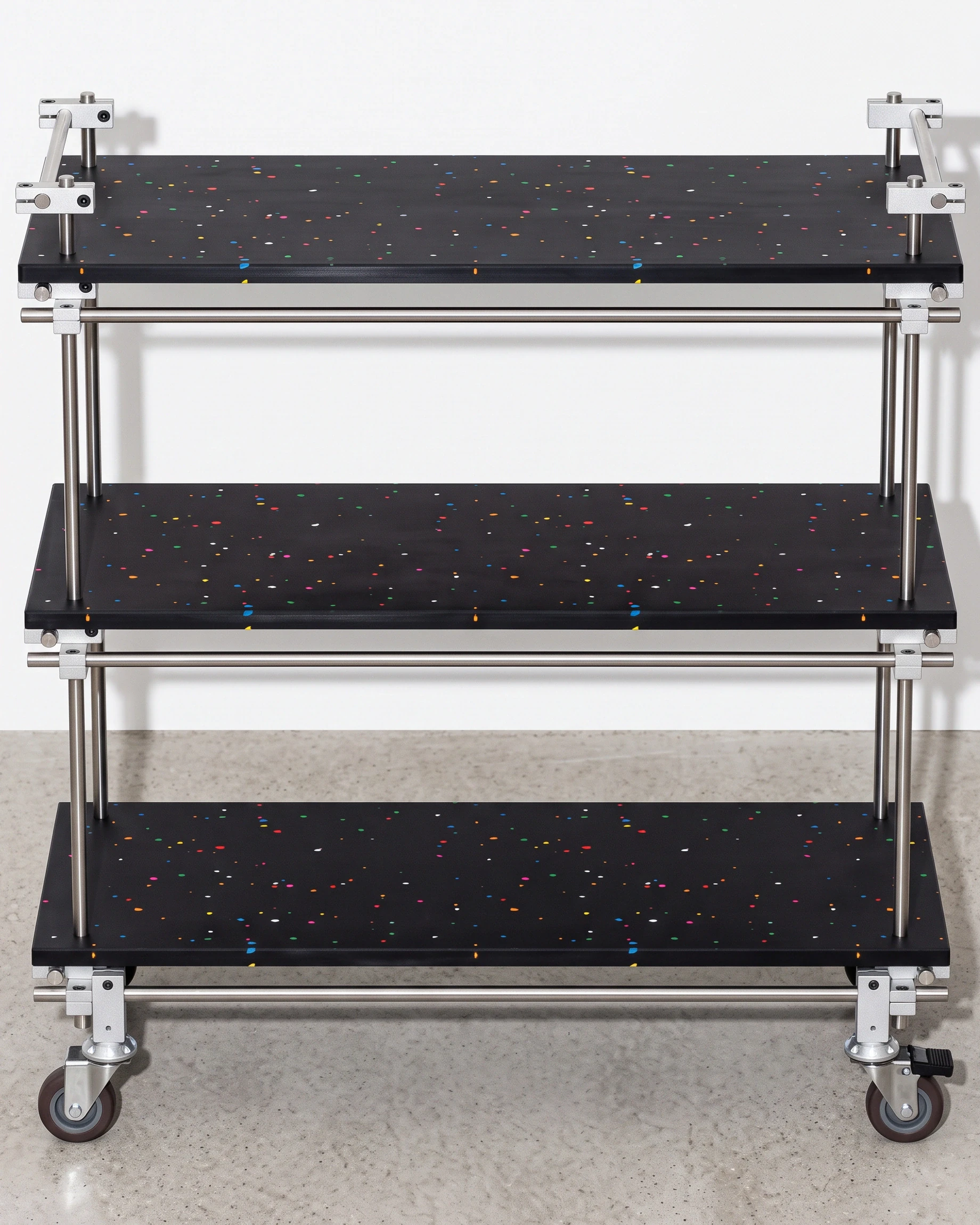

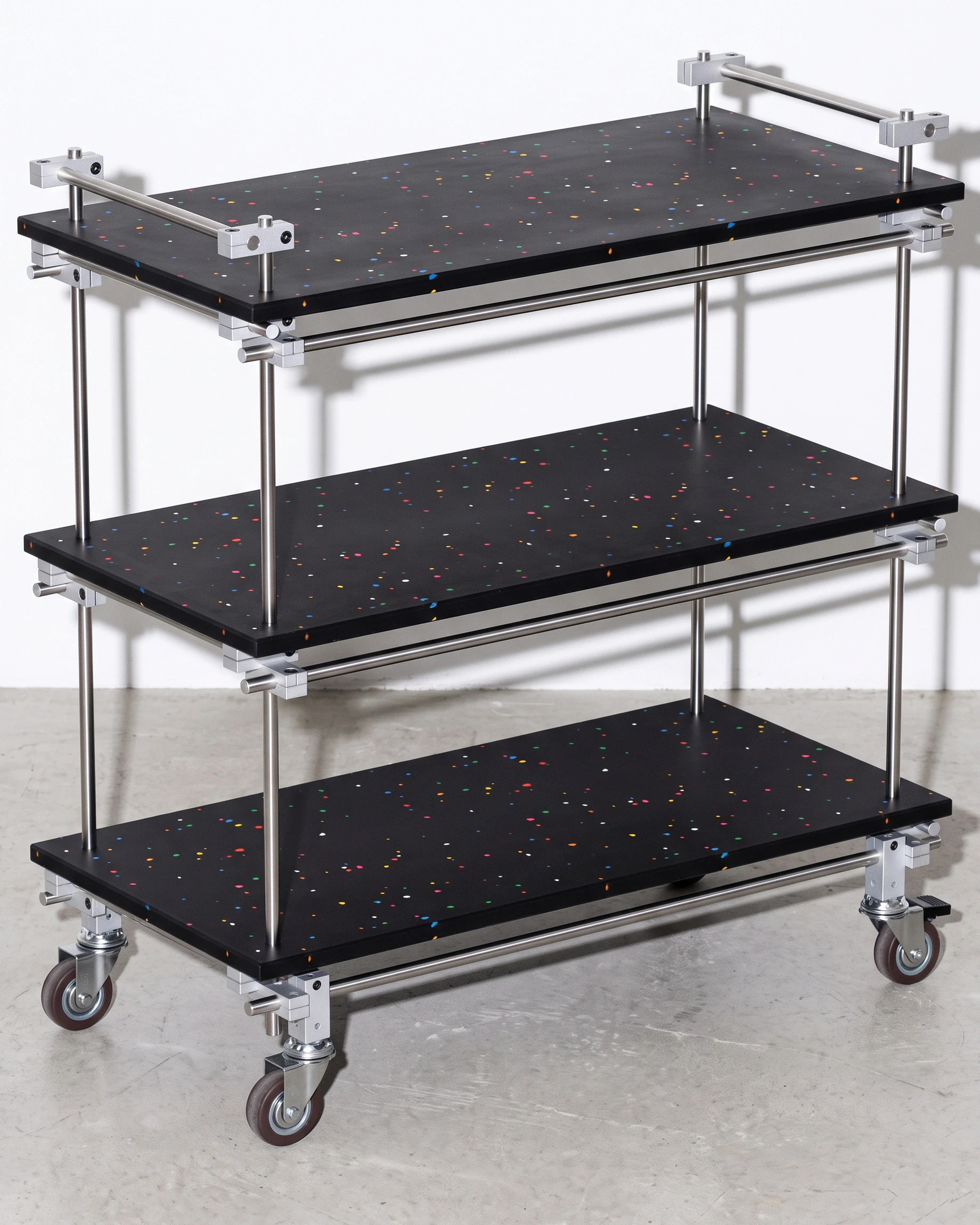

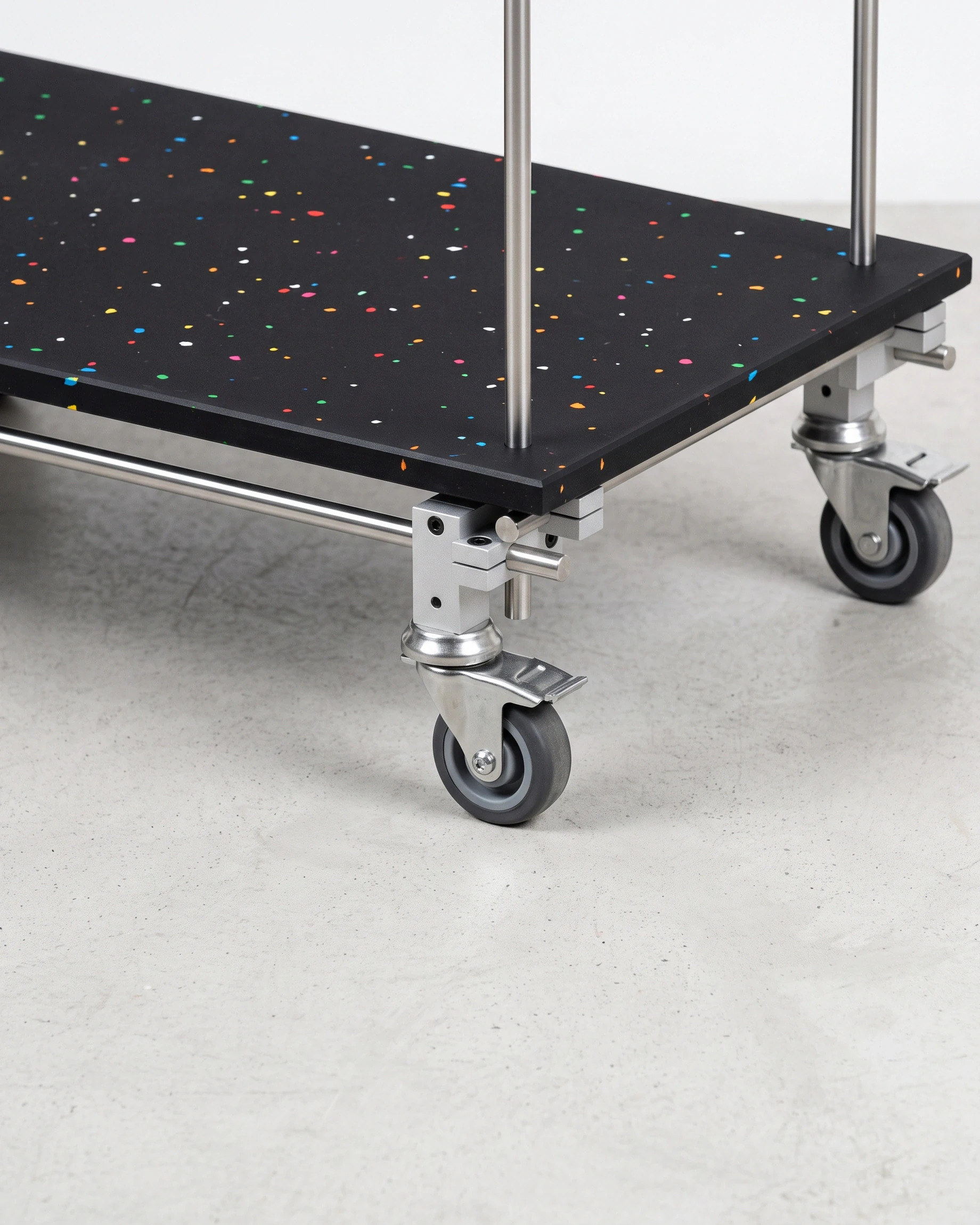

A trolley on swivel castors: shelves on steel-rod frames, with handles at both ends. The castors attach to the frame with a clamp — nothing is drilled into the rods.
- Overall size, W × D × H
- 604 × 306 × 650 mm
- Weight
- ≈ 14.4 kg
- Material
- rPS 12 mm · black, colour flecks
- Frame
- rods Ø10 mm, hardened chrome-plated steel
- Castors
- swivel Ø50, two with brakes
- Assembly
- with the keys from the box, by the instructions
Drawing
Front, side and plan views with dimensions. Click the sheet for a closer look. The file is an A3 sheet: print it at 100% and the scale is true.
What’s in the box
- Sheet parts
- shelf — 3
- Rods Ø10
- 18 pcs, 8.2 m, cut to length
- T-clamps
- 4 pcs
- Castors Ø50
- 4 pcs
- Cross clamps
- 28 pcs
- Hex key set
- 1 pc
- Assembly instructions
- step by step, illustrated
Need a different size?
Build your own version in the configurator: size to the millimetre, colour, castors — with an instant price.
