Board stand · 75 × 37 × 171 cm
Curator
51,300 ₽
Pre-order: production from 45 working days

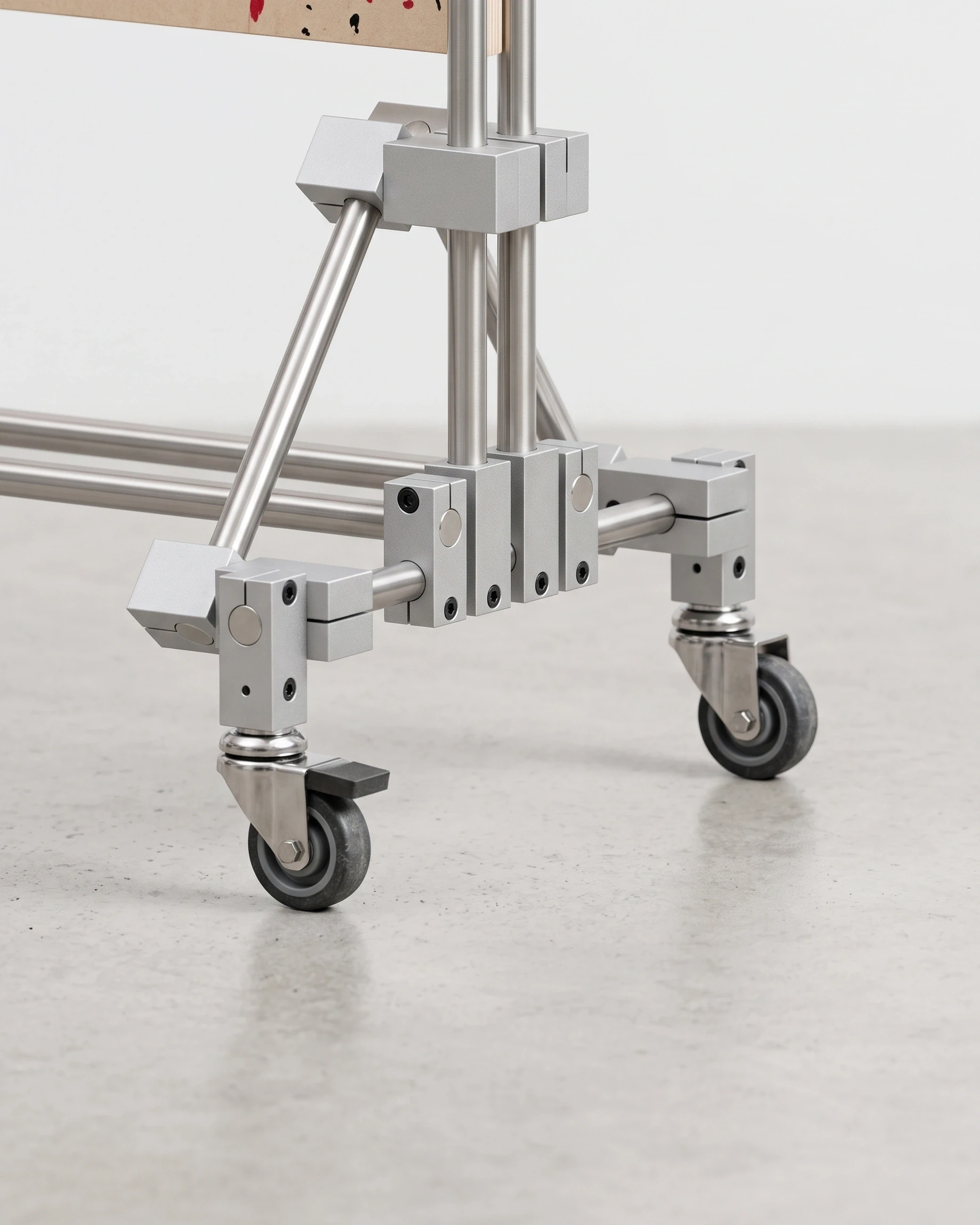

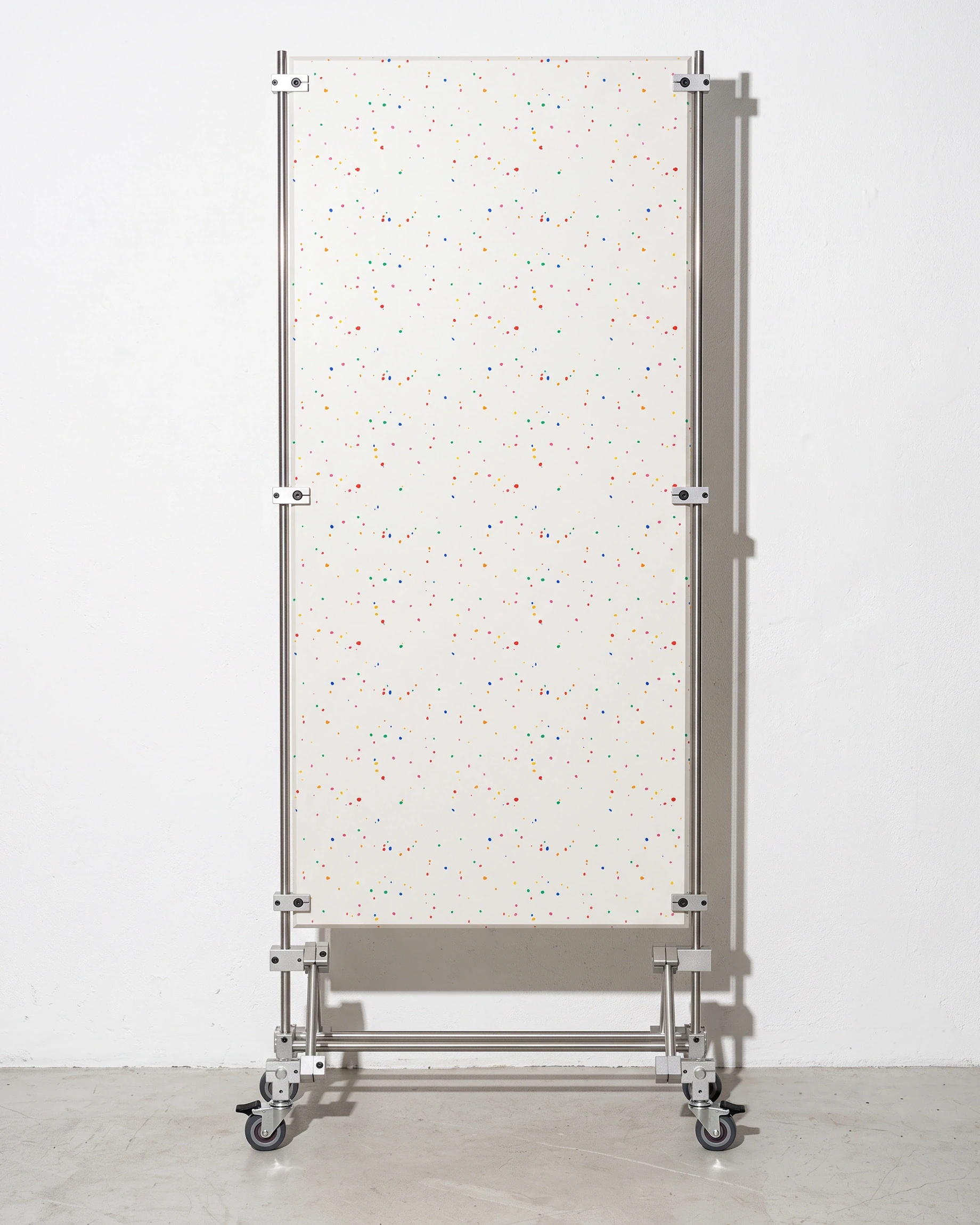

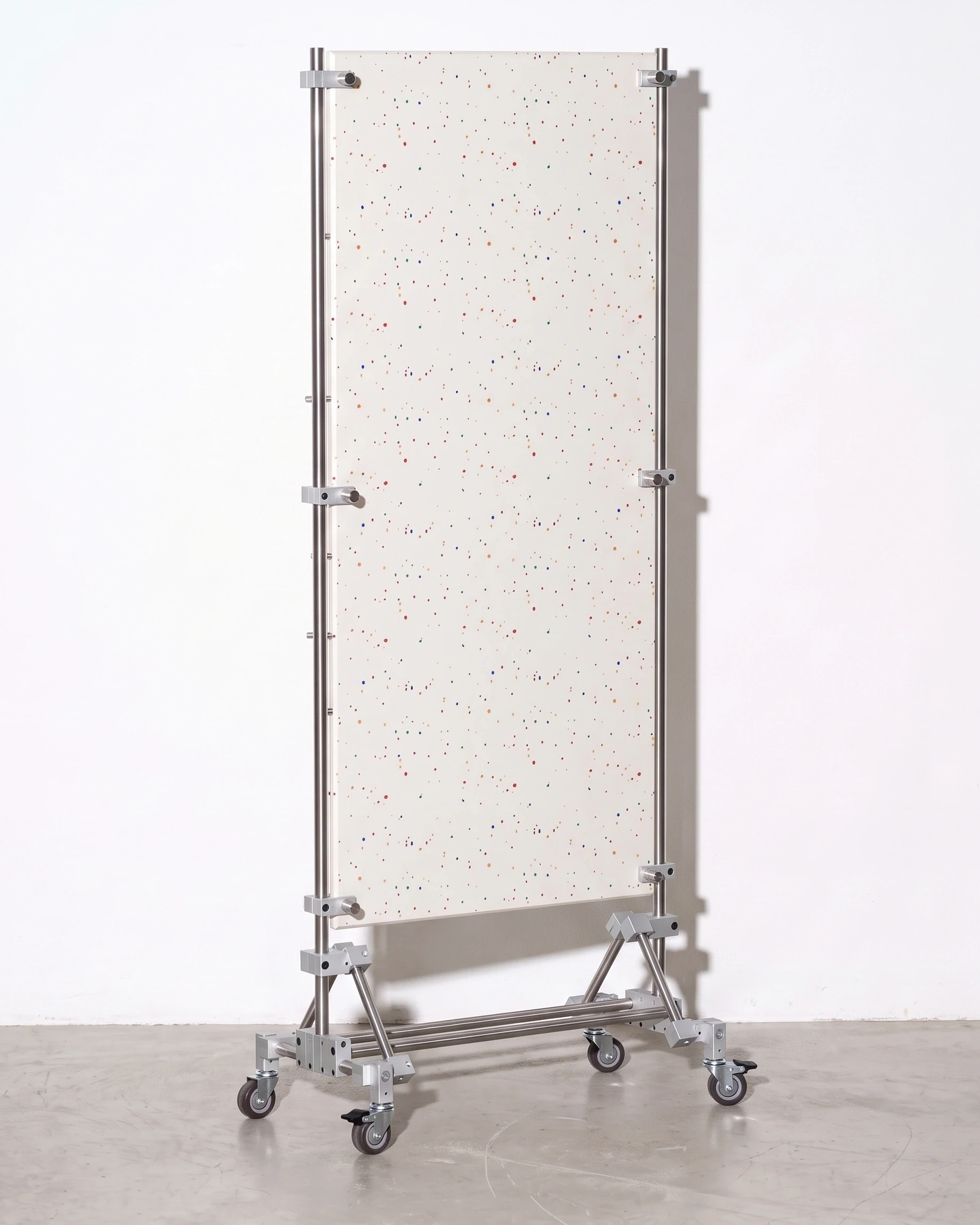

A stand on casters: a recycled polystyrene board clamped between pairs of thick Ø16 posts, A-legs on swivel clamps below. The board is plain or slotted for hooks and small shelves.
- Overall size, W × D × H
- 746 × 368 × 1,710 mm
- Weight
- ≈ 33 kg
- Material
- rPS 12 mm · white, colour flecks
- Frame
- rods Ø16 mm, hardened chrome-plated steel
- Castors
- swivel Ø50, two with brakes
- Assembly
- with the keys from the box, by the instructions
Drawing
Front, side and plan views with dimensions. Click the sheet for a closer look. The file is an A3 sheet: print it at 100% and the scale is true.
What’s in the box
- Sheet parts
- доска стенда — 1
- Rods Ø16
- 22 pcs, 9.9 m, cut to length
- T-clamps
- 8 pcs
- Cross clamps
- 16 pcs
- Castors Ø50
- 4 pcs
- Hex key set
- 1 pc
- Assembly instructions
- step by step, illustrated
Need a different size?
Build your own version in the configurator: size to the millimetre, colour, castors — with an instant price.
