Cube shelving · 143 × 41 × 110 cm
Archivist
145,200 ₽
Pre-order: production from 45 working days
Colour · black, colour flecks

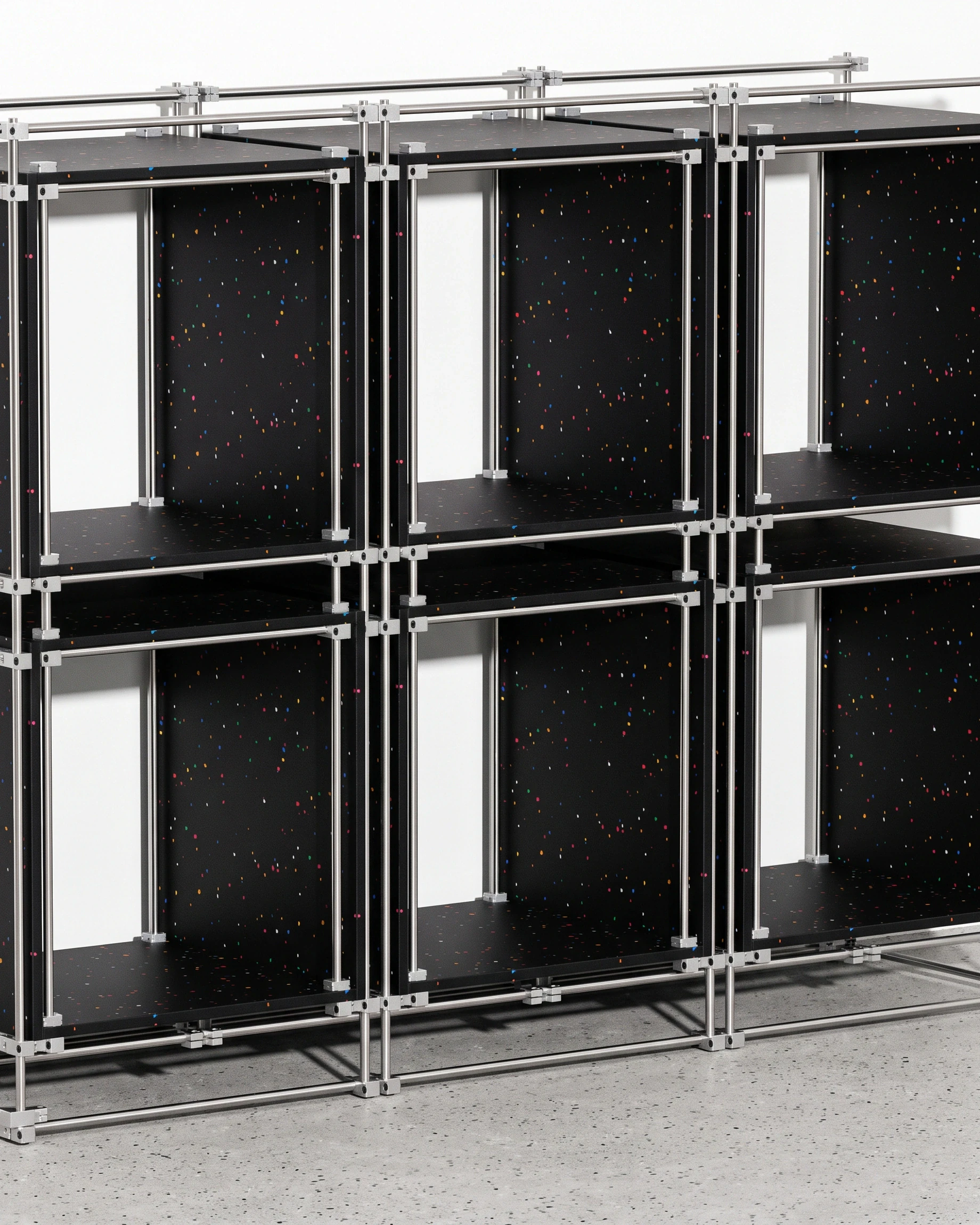

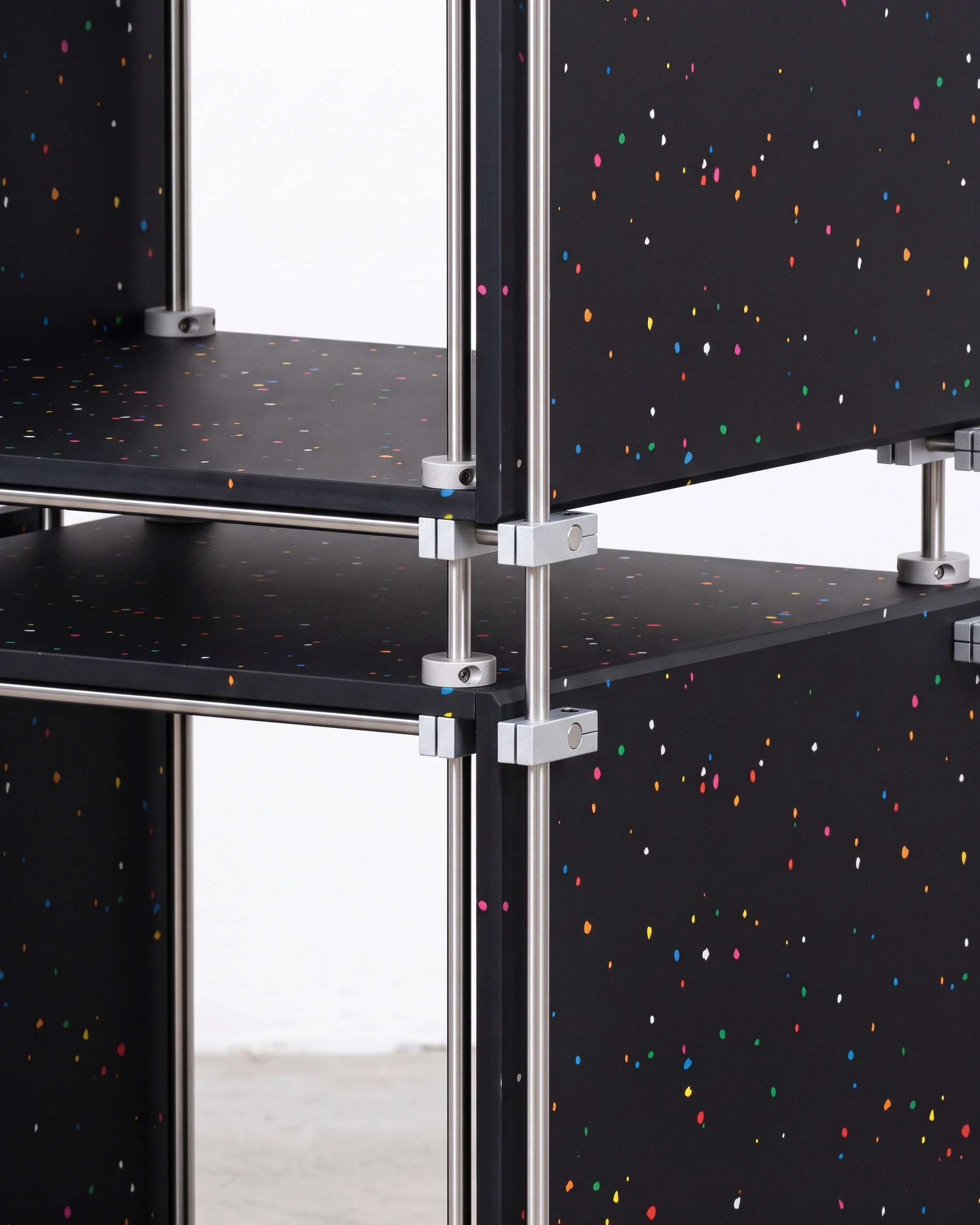

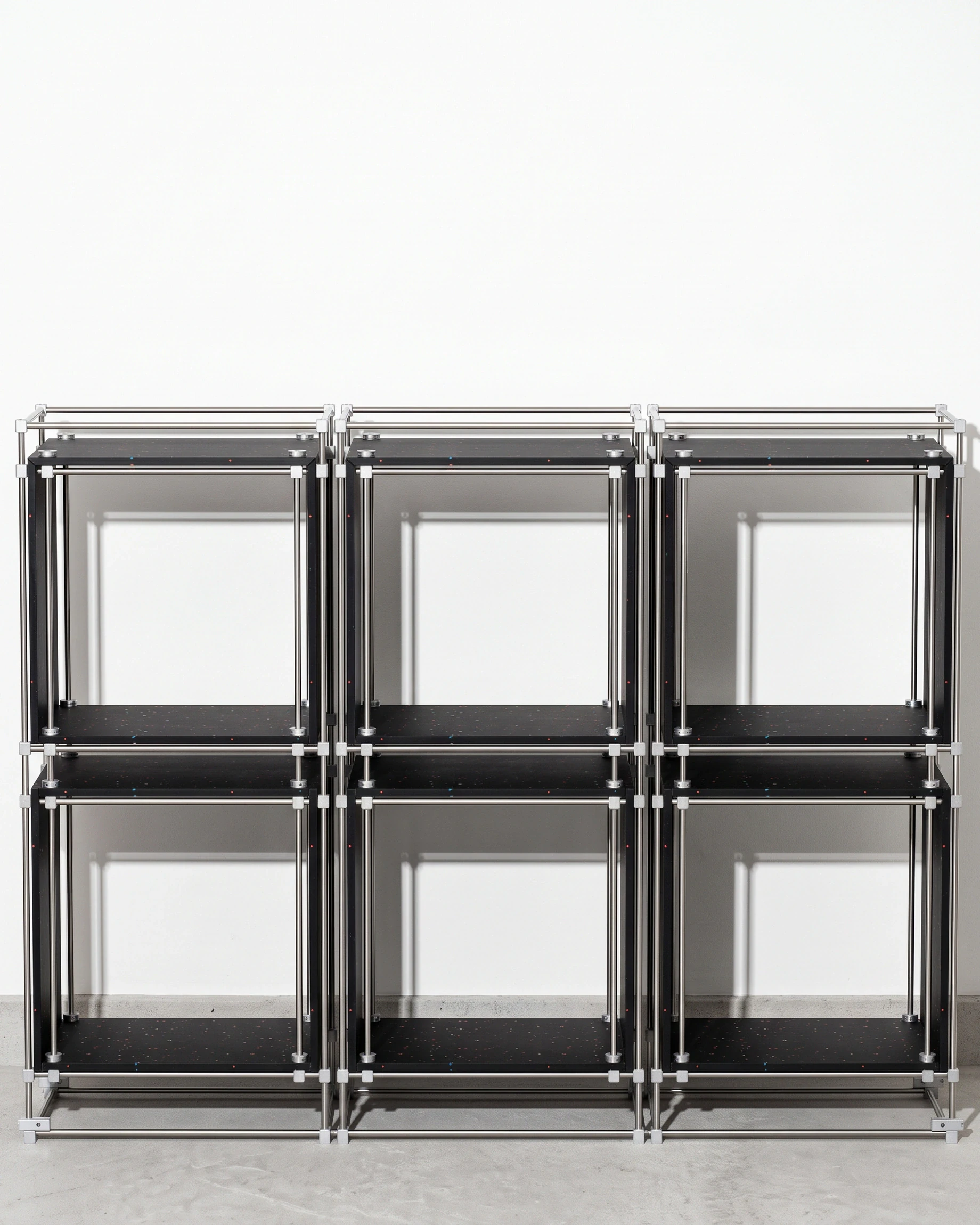

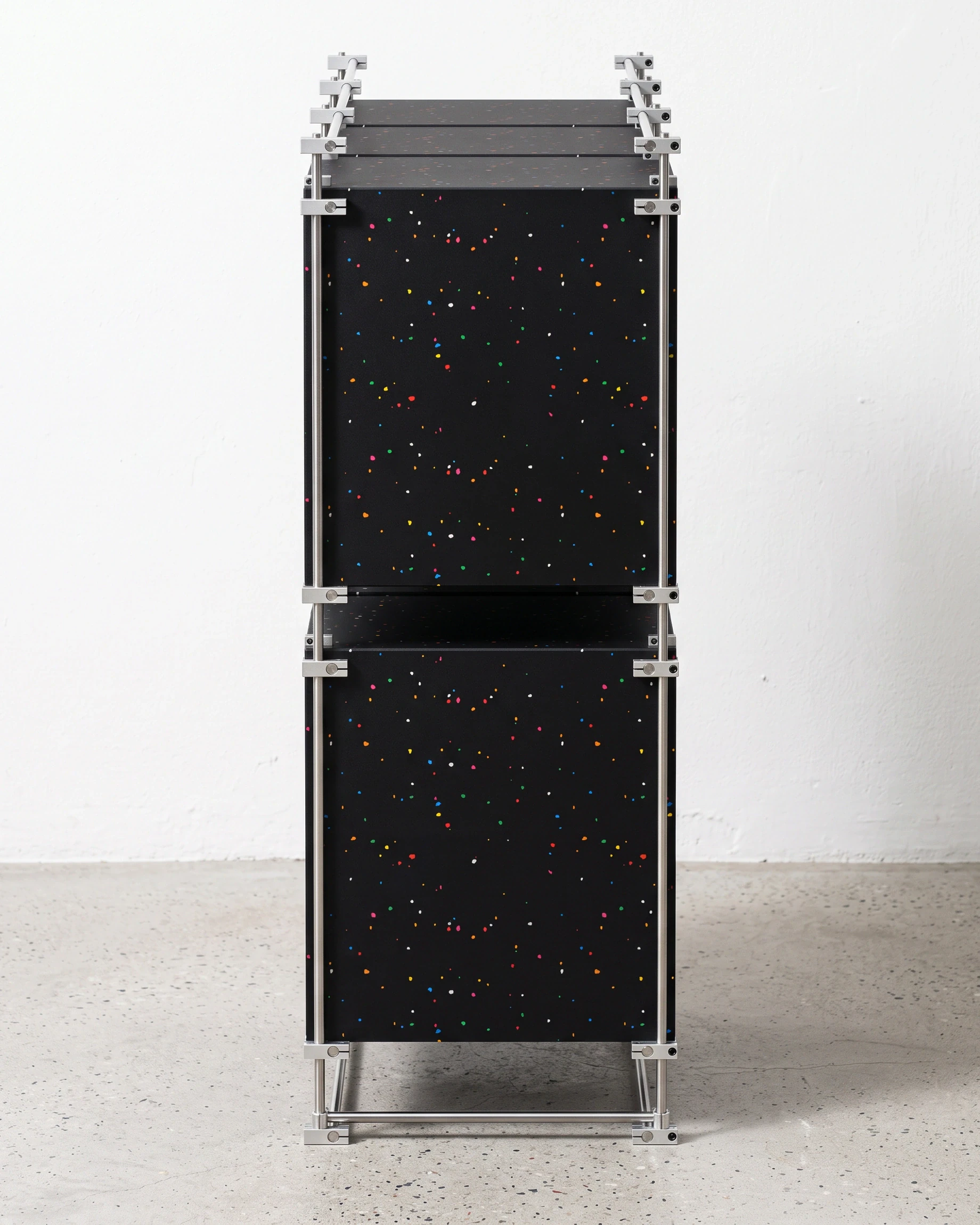

Cube modules cut from sheet on steel posts: the cubes hang on mini posts with collars and are open at the front and back — for records, books, boxes. Columns and tiers are tied together by shared rods.
- Overall size, W × D × H
- 1,434 × 406 × 1,100 mm
- Weight
- ≈ 88.9 kg
- Material
- rPS 12 mm · black, colour flecks
- Frame
- rods Ø10 mm, hardened chrome-plated steel
- Assembly
- with the keys from the box, by the instructions
Drawing
Front, side and plan views with dimensions. Click the sheet for a closer look. The file is an A3 sheet: print it at 100% and the scale is true.
What’s in the box
- Sheet parts
- cube base / top — 12, cube side — 12
- Rods Ø10
- 54 pcs, 42.2 m, cut to length
- Cross clamps
- 124 pcs
- Stop collars
- 48 pcs
- Hex key set
- 1 pc
- Assembly instructions
- step by step, illustrated
Need a different size?
Build your own version in the configurator: size to the millimetre, colour, castors — with an instant price.
